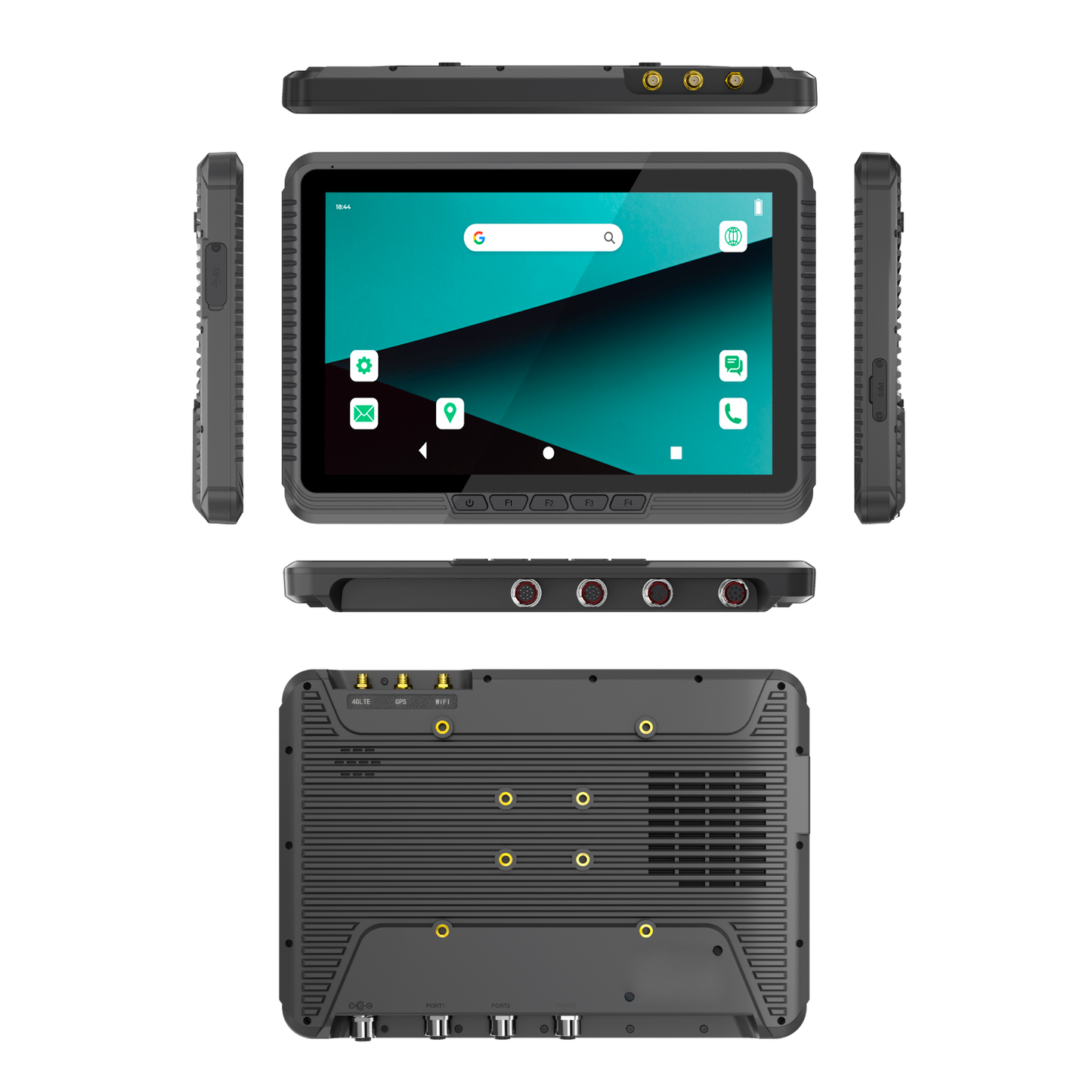

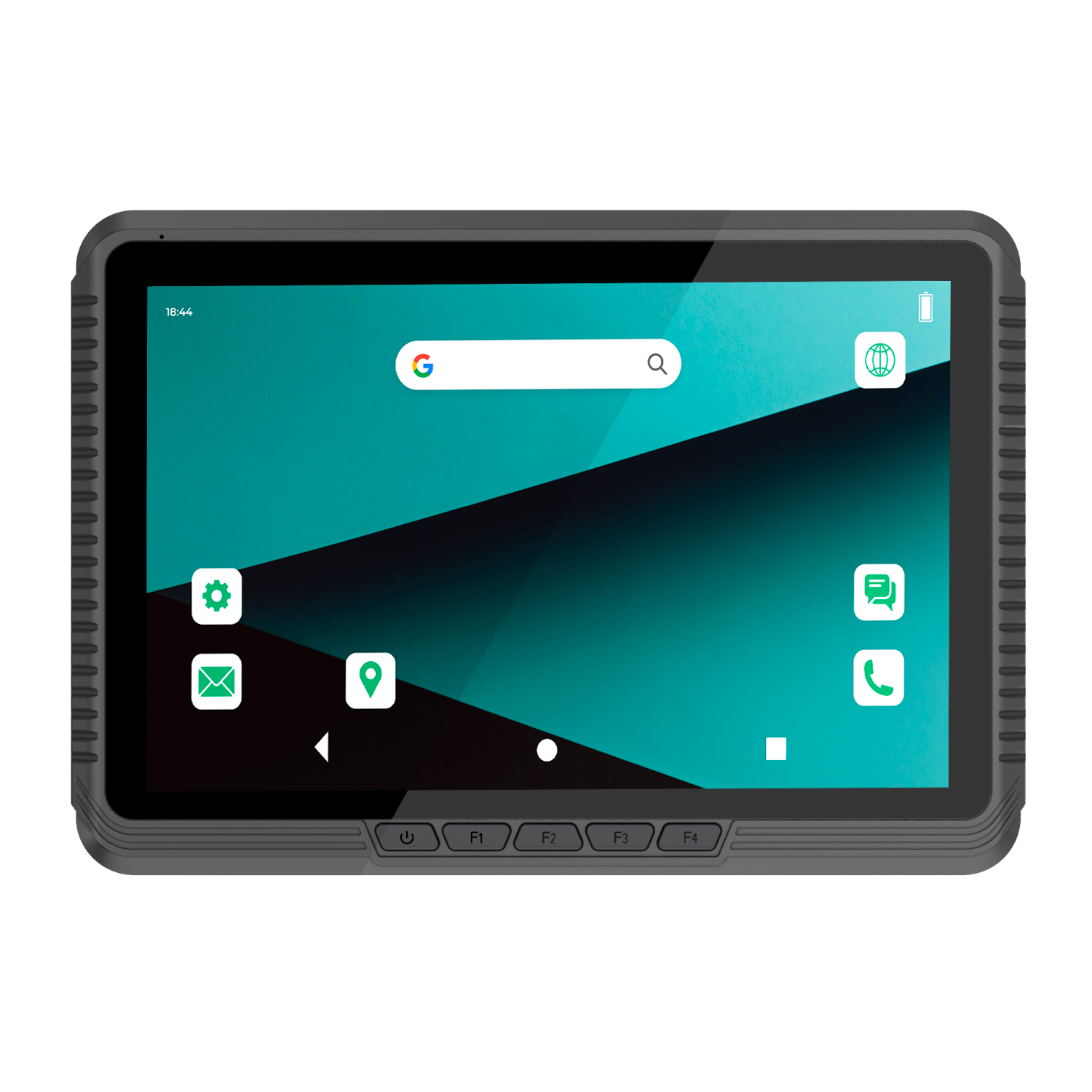

VT10 Vehicle Mount Terminal
VT10 Vehicle Mount Terminal
- Vehicle mount terminals are mobile computers that are installed in vehicles to facilitate communication, control and management of operations.
- These terminals can have various applications in the agribusiness sector, logistics, the forestry industry, meat processing plants, ports, airports and others.
- Some of its applications can be:
- Monitor the status and location of vehicles and loads, through the use of GPS, NFC and connected devices.
- Transmit information in real time between drivers, operators and customers, through the use of 4G, Wi-Fi and Bluetooth.
- Adapt to different environmental and operational conditions, by using sunlight-viewable displays, water- and dust-resistant (IP65) enclosures, and native VESA enclosures.
- If you are looking for a mobile computer that meets all these characteristics and more, we present the line of Pos & Office vehicle mount terminals, of high quality, robustness and performance, designed to meet the needs of your business.
Dimensions
Dimensions
264.5mm x 184.1mm x 23mm
Weight
Weight
830grs
Box contents
Box contents
1x VT10
1x Wi-Fi Antenna 2.4~2.5GHz/5.15~5.85GHz, 2±0.5dBi
1x Mushroom GPS Antenna
1x 4G Antenna
1x Adapter Cable with 8 Pin Aviation Connector to φ5.5 Power Port
Technical specifications
-
PERFORMANCE
Processor
Octa-core up to 2.2Ghz
OS
Android 12 with GMS
Memory
4GB RAM
Storage
64GB Flash
Screen
10.1” 800*1280 pixels
Bright
700 nits
Touch panel
Multi-touch screen (5 points) capacitive touch sensitive, allows the use of gloves and wet fingers.
With Gorilla Glass protection
Keyboard
2x Function Key, programmable
1x Volume Up Button
1x Volume Down Button
1x On/Off Button
Interfaces
Standard
1x USB 2.0
1x DC Power Connector
Optional
1x SIM slot
1x 10/100M Ethernet Port
1x RS232 + RS232/RS485 port
1x USB 2.0 + CAN port
Notifications
Sound, vibration and colored LEDs -
WIRELESS COMMUNICATIONS
WWAN
GSM: B2/B3/B5/B8
WCDMA: B1/B2/B5/B8
TDD: B38/B39/B40/B41N TD-S: B34+B39
FDD: B1/B2/B3/B4/B5/B7/B8//B17/B20/B20A&B
WLAN
Wi-Fi 802.11 a/b/g/n/ac
2.4G+5.8G dual frequency
WPAN
Bluetooth 5.2 Low Energy
GPS
Supports GPS, Glonass
NFC (optional)
13.56MHz
Maximum reading distance: 4cm -
BATTERY (optional)
Capacity
Li-Ion 2000mAh/3.7V
Estimated duration
30 minutes (volume at 50%, brightness of 200 lumens, 1080P Video) -
ENVIRONMENTAL
Operating temperature
-20 to 60°C
Storage temperature
-30 to 70°C
Electrostatic Discharge
±8kV contact discharge
±15kV air discharge
Humidity
5% to 95% (non-condensing)
Drop Specification
Withstands multiple drops of up to 1.2 meters onto concrete at room temperature
Dust and water resistance
IP65 -
PHYSICAL CHARACTERISTICS
Dimensions
264.5mm x 184.1mm x 23mm
Weight
830grs
Color
Black -
-
