TT20 Thermal Label Printer

TT20 Thermal Label Printer

If you are looking for a label printer that offers you quality, speed and versatility, don't miss the Pos & Office TT20 thermal label printer.

Some of the prominent features are:

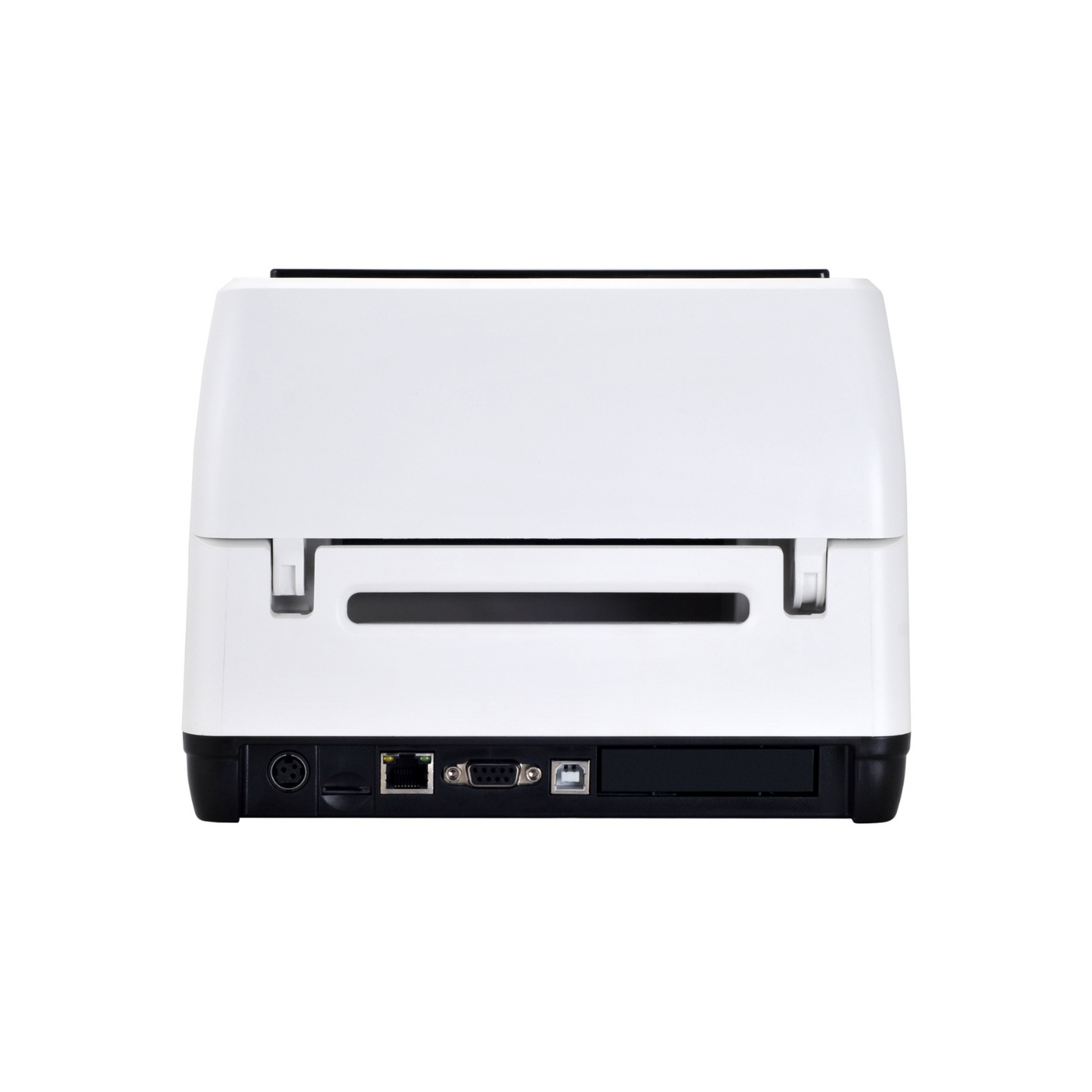

  • Multiple ports available, USB, LAN, Serial, Wi-Fi module for wireless printing, which allow you to connect it to your computer or local network easily and quickly.
  • High capacity ribbon of 300 meters, so you don't have to change it frequently.
  • 203dpi resolution, so that your labels have a clear and professional resolution.
  • Printing by thermal or direct thermal transfer, so you can choose the method that best suits you according to the material and the duration of the labels.
  • It supports printing on different materials (paper, labels, PET silver paper, matte paper, TAGs and more), so you can create personalized labels for any use.

The TT20 Pos & Office Label Printer is affordable, robust and easy to use.
Includes label printing software that allows you to design, edit and print your labels with ease.

Dimensions

282mm(D) x 232mm(W) x 171mm(H)

Weight

2.56kg

Box contents

1x P&O TT20
1x Power supply
1x USB cable
1x Quick User Guide
1x Roll of labels (sample)

View full details

Technical specifications

  • PRINTING PARAMETERS

    Printing method
    Thermal Transfer / Direct Thermal
    Resolution
    203dpi
    Print speed
    127mm/sec (5”)
    Print width
    104mm (4.09”)
    Print length
    1778mm (70”)

  • MEDIA

    Media type
    Continuous, Gap, Black Mark, Fanfold and Perforated
    Max. Media Width
    25.4~118mm (1.0”~4.6”)
    Thickness
    0.06~0.254mm (2.36~10mil)
    Tape Core Diameter
    25.4~76.2mm (1"~3")
    Label length
    10 ~ 1778mm(0.39" ~ 70" )
    Roll capacity
    127mm (5“) OD (External Diameter)
    Ribbon capacity
    Max 300m
    Ribbon width
    110mm

  • PERFORMANCE

    Processor
    32-bit CPU
    Memory
    8MB Flash/8MB SDRAM
    Flash memory can be expanded up to 4 GB
    Interface
    USB
    LAN (optional)
    SERIAL (optional)
    Sensors
    Gap sensor
    Lid open sensor
    Black mark sensor
    Ribbon sensor
    Print head life
    30km
    Power input
    AC 110~240V,1.8A, 50-60Hz
    Power output
    DC 24V, 2.5A, 60W

  • FONTS, GRAPHICS & SYMBOLS

    Internal sources
    8 bitmapped alphanumeric fonts.
    Windows fonts can be downloaded from the software.
    1D barcodes
    Code 39, Code 93, Code 128UCC, Code 128，subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN & UPC 2 (5) additional digits, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11
    2D barcodes
    PDF-417, Maxicode, DataMatrix, QR code, Aztec
    Rotation
    0°, 90°,180°,270°
    Emulation
    Supports TSPL, EPL, ZPL, DPL commands

  • PHYSICAL & ENVIRONMENTAL CHARACTERISTICS

    Dimensions
    282mm(D) x 232mm(W) x 171mm(H)
    Weight
    2.56kg
    Color
    Black / White
    Operating Temperature
    5 ~ 40 ° C - Humidity: 25 ~ 85% non-condensing
    Storage temperature
    -40 ~ 60 ° C – Humidity: 10 ~ 90% non-condensing

  • SOFTWARE

    Drivers
    Windows/Linux/Mac
    SDKs
    Windows/Android/iOS

  • OPTIONALS

    Available options
    Wi-Fi module
    Network port
    Serial port
    Cutter
    External label roll holder
    Label peeler module
