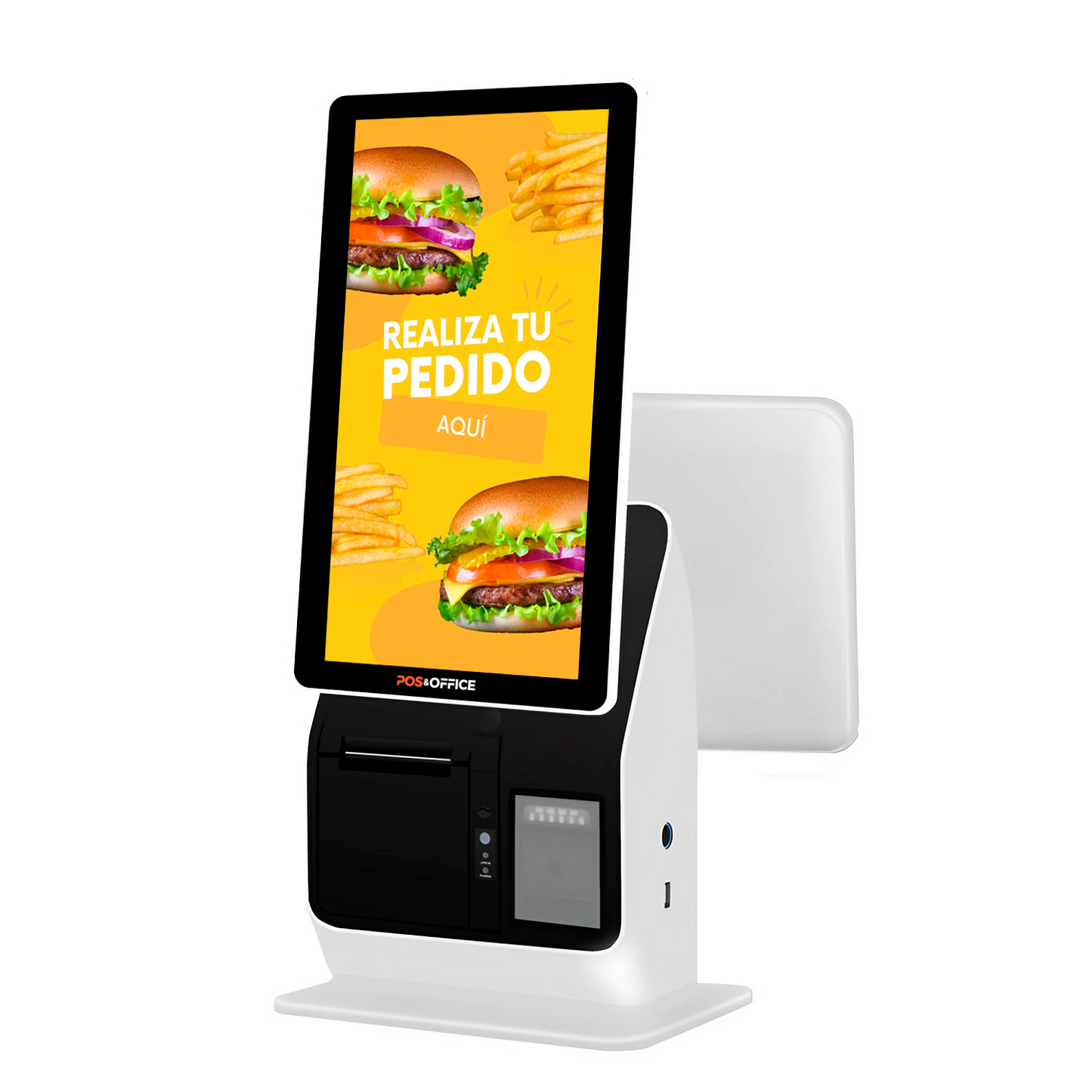

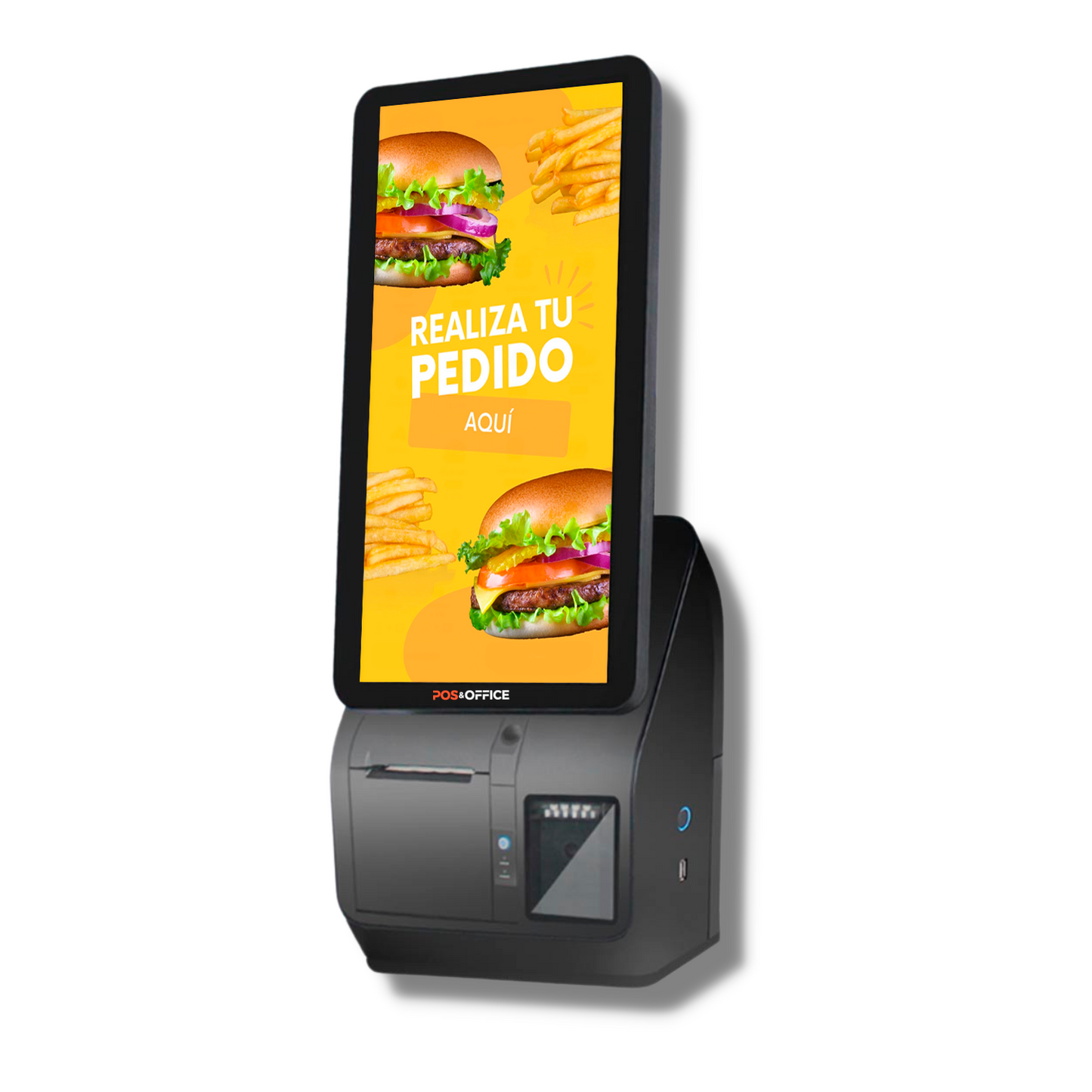

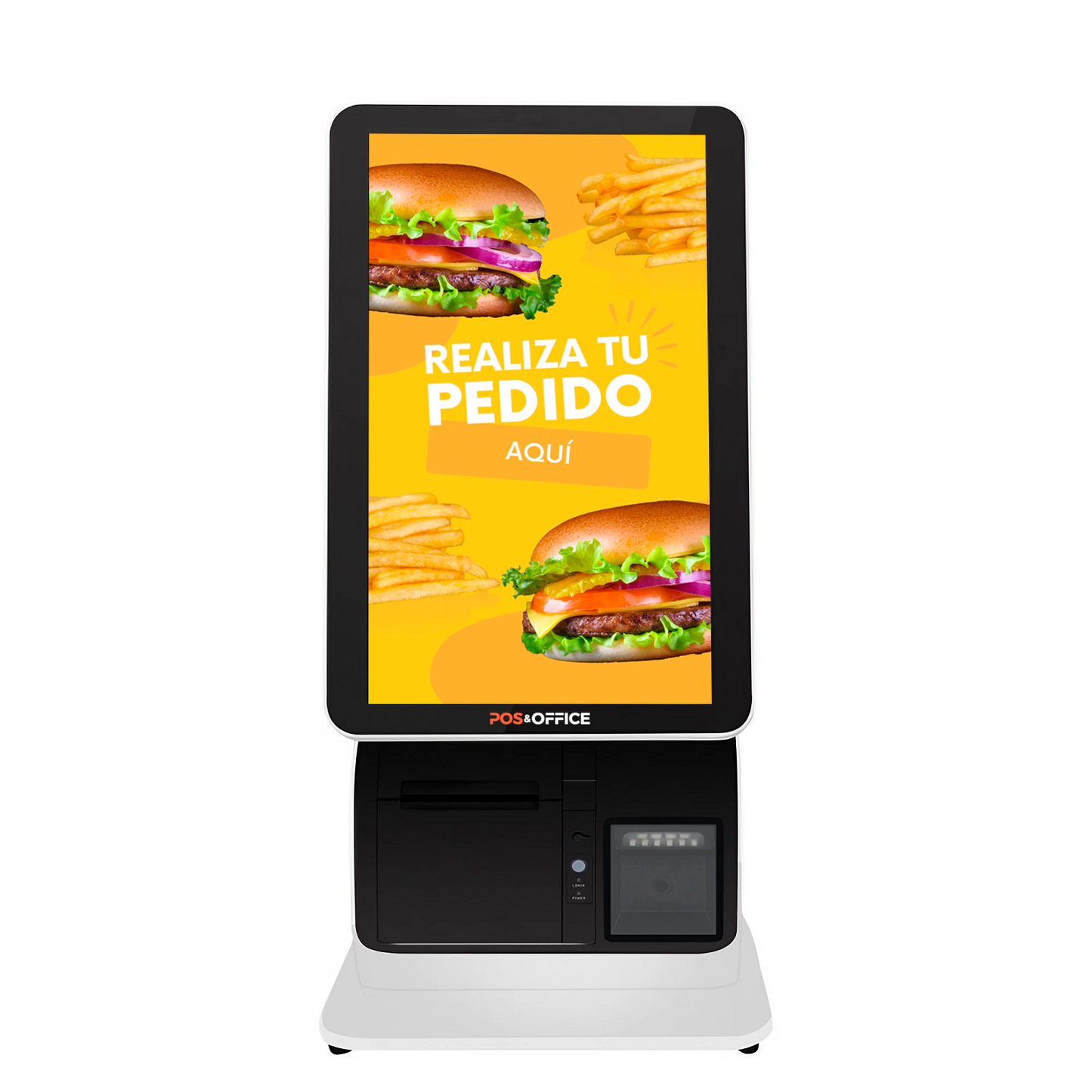

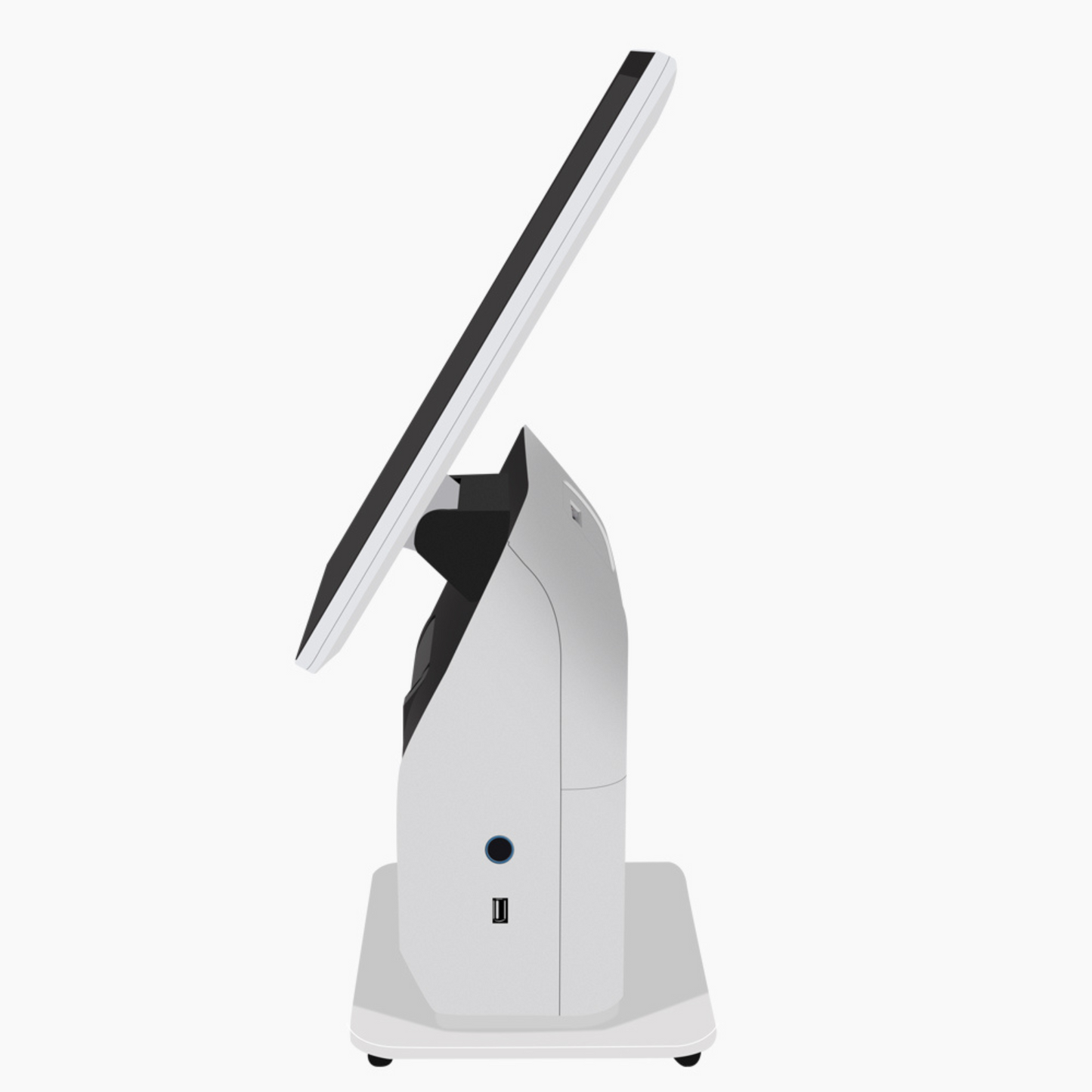

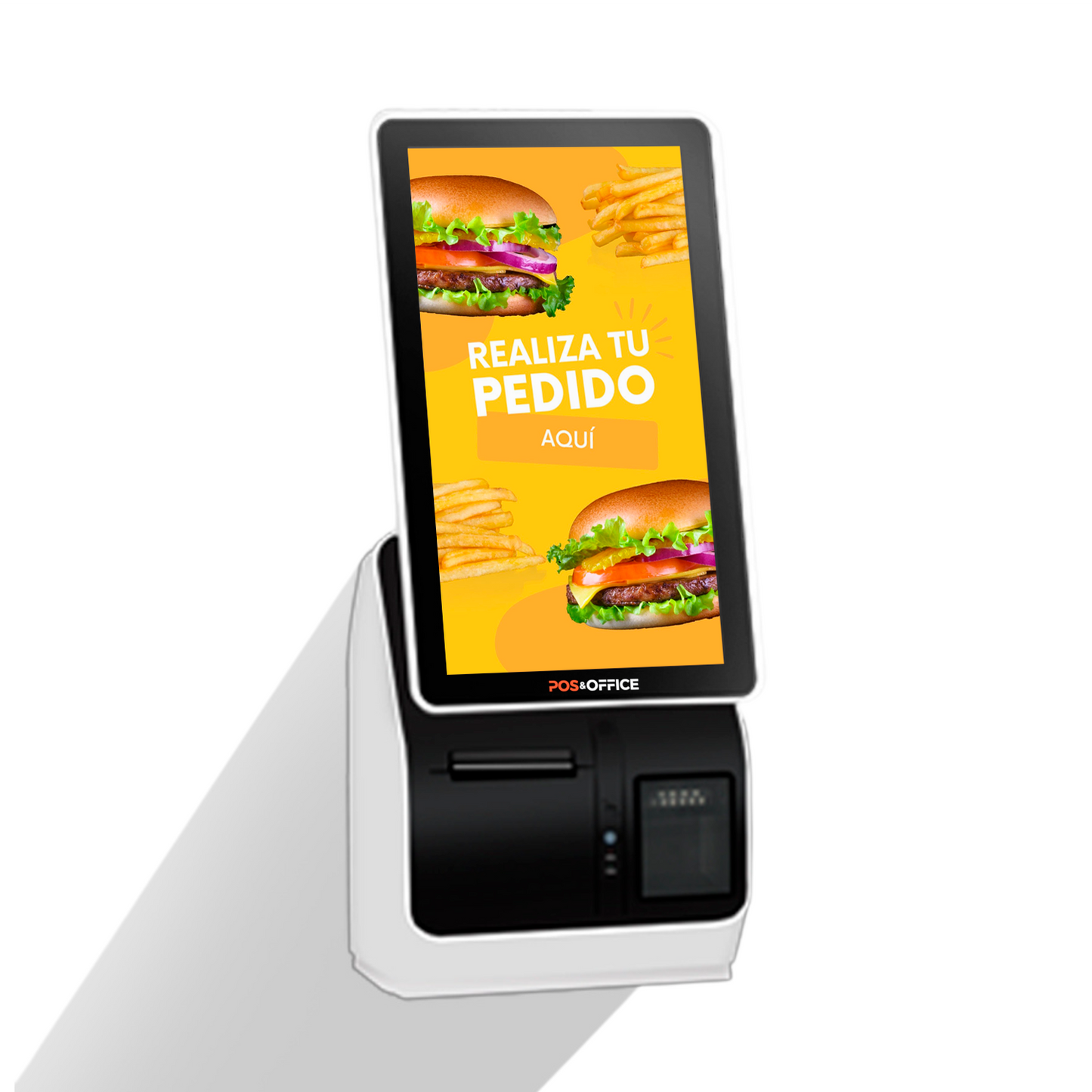

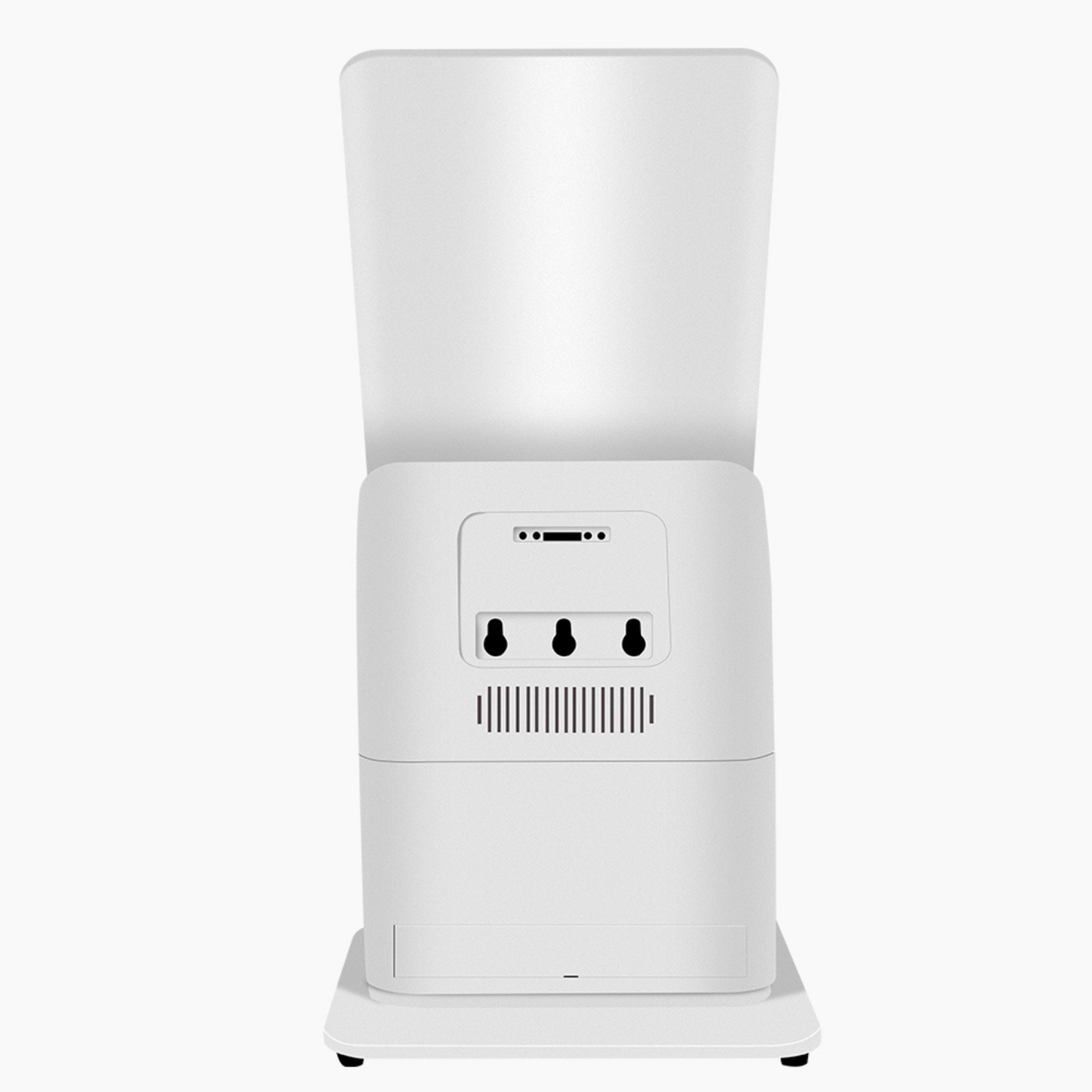

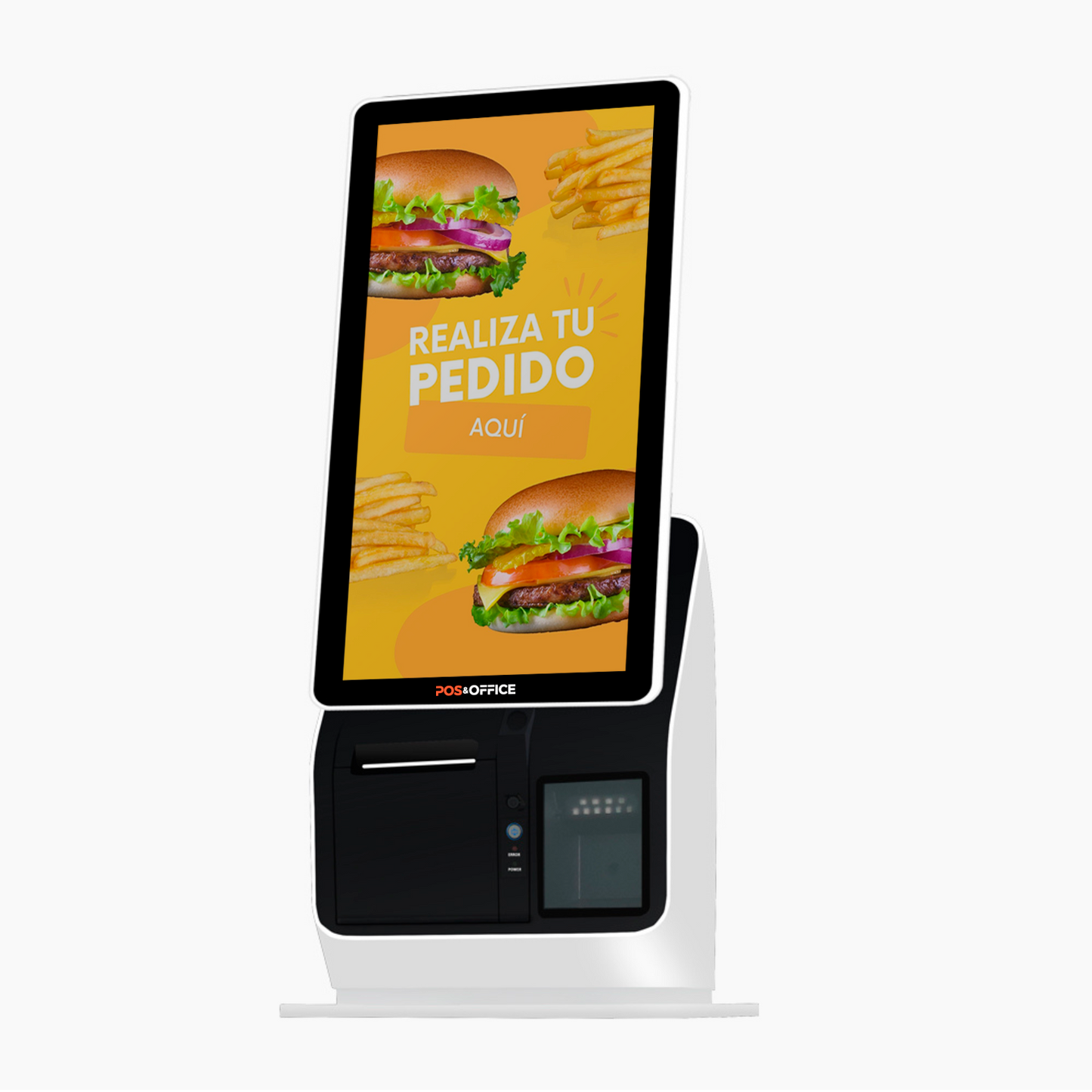

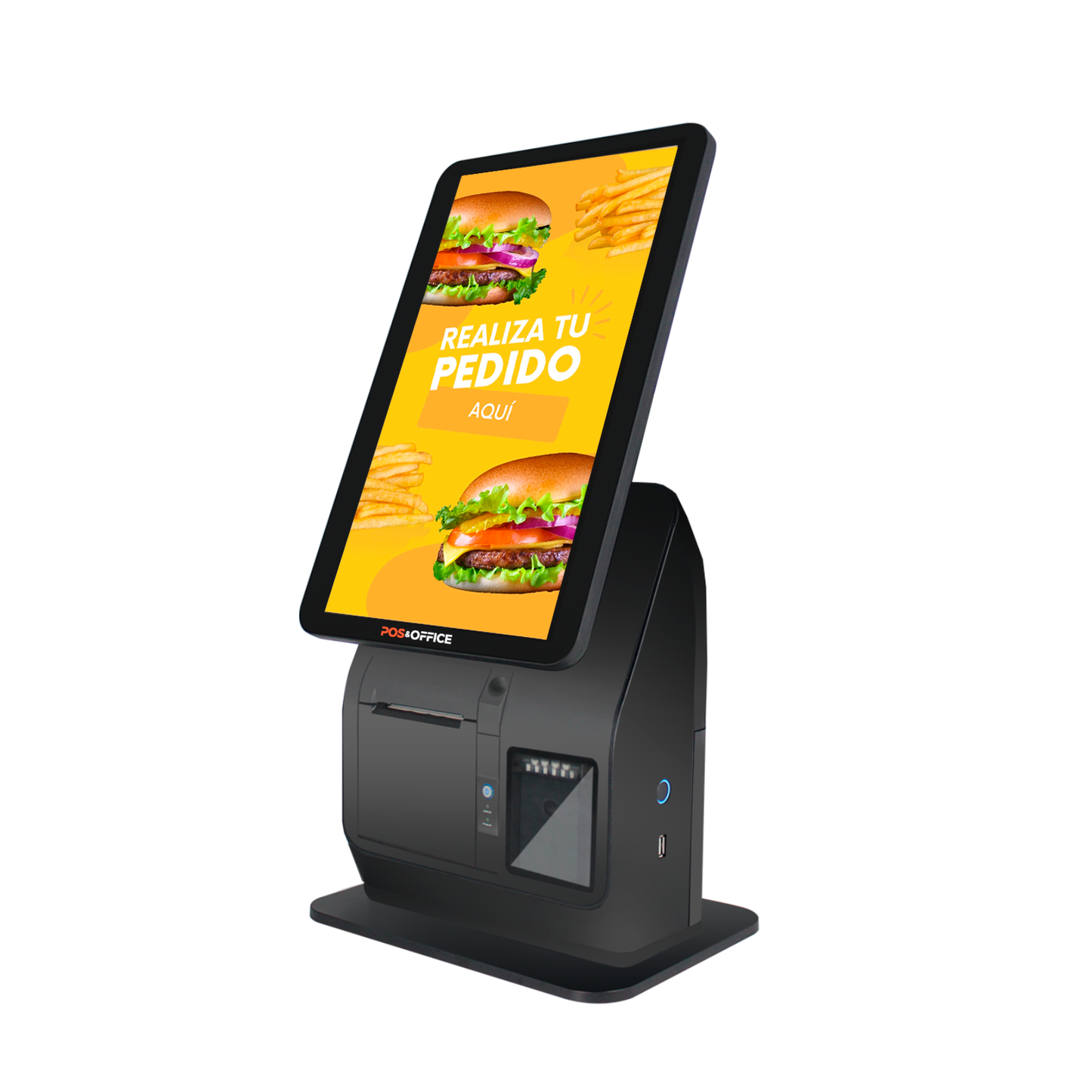

Self Service Terminal TK180

Self Service Terminal TK180

  • Discover the TK180 self-service kiosk from Pos & Office, the definitive solution to revolutionize customer service and multiply sales in your business.
  • The TK180 Kiosk offers you an operating system to choose between Android 11 or Windows 11 Pro, which guarantees maximum compatibility and the best performance to manage your business.
  • The TK180 has a 15.6" full HD capacitive touch screen that makes it easy to interact with the kiosk. In addition, you can opt for a second 15.6" full HD capacitive touch screen, to offer your customers an interactive and personalized experience.
  • The self-service kiosk has a built-in 2D barcode reader, allowing you to quickly and accurately scan products. It also has an integrated 3" thermal ticket printer that allows you to issue receipts or vouchers instantly. In addition, it has the option of Wi-Fi and Bluetooth available, to connect to other devices or wireless networks.
  • The TK180 self-service terminal is resistant and stable thanks to its solid ABS plastic structure and its aluminum alloy support base. Additionally, it has multiple ports (USB, Serial, VGA, LAN) to connect other peripherals or accessories.
  • It is ideal for use in restaurants, fast food chains, supermarkets, pharmacies, convenience stores and any other business that wants to offer its customers a complete and efficient self-service solution.

Dimensions

680mm x 480mm x 360mm

Weight

7.1Kgs

Box contents

1x Kiosk TK180 (includes power supply and power cable)

View full details

Technical specifications

  • PERFORMANCE

    Processor
    Android
    Rockchip RK3568 Quad Core 2.0Ghz
    Windows
    Option 1 - Intel J6412 Quad-core, up to 2.6GHz
    Option 2 – Intel Core i5 10210U, up to 4.2Ghz
    OS
    Android 11 / Windows 11 Pro Ready
    Memory
    Android
    4GB RAM
    Windows
    4GB RAM (support up to 8GB)
    Storage
    Android
    64GB eMMC
    Windows
    128GB SSD
    Display
    15.6” Full HD, capacitive touch
    Orientation
    Vertical
    Resolution
    1080x1920
    Second screen (optional)
    15.6” HD, capacitive touch
    Orientation
    Horizontal
    Resolution
    768x1366
    Speakers (optional)
    2x 2W

  • WIRELESS CONNECTIVITY

    Wi-Fi
    Android
    802.11b/g/n
    Windows
    802.11b/g/n (optional)
    Bluetooth
    Android
    BT4.2
    Windows
    BT4.2 (optional)

  • PRINTER

    Printer
    80mm thermal with auto cut function
    Print speed
    150mm/s

  • ENVIRONMENTAL

    Operating temperature
    0 to 50°C
    Storage temperature
    -20 to 60°C
    Humidity
    5% to 95% (non-condensing)

  • DATA CAPTURE

    Scanner
    1D/2D imager, frontal orientation. Read codes from screens.
    1D
    All major symbologies,
    among them UPC/EAN/JAN, UPC-A & UPC-E,
    EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN,
    Code 39 (with full ASCII), Codabar (NW7),
    Code 128 & EAN 128, Code 93, Interleaved 2 of 5
    2D
    All major symbologies including QR Code, Data Matrix, PDF417

  • PHYSICAL CHARACTERISTICS

    Dimensions
    680mm x 480mm x 360mm
    Weight
    7.1kg
    Construction
    ABS plastic and aluminum alloy base
    Color
    White/Black or Black
    Interfaces
    5x USB2.0
    1x RJ45 Ethernet
    1x COM-Serial
    1x VGA (only available in Windows version)
    1x Audio Out
    1x Microphone
    1x DC-IN 12V 3.5mm
    Energy
    Input AC 100~240V/50~60hz
    DC 12V/5A output
