Self Service Terminal TK121
Self Service Terminal TK121

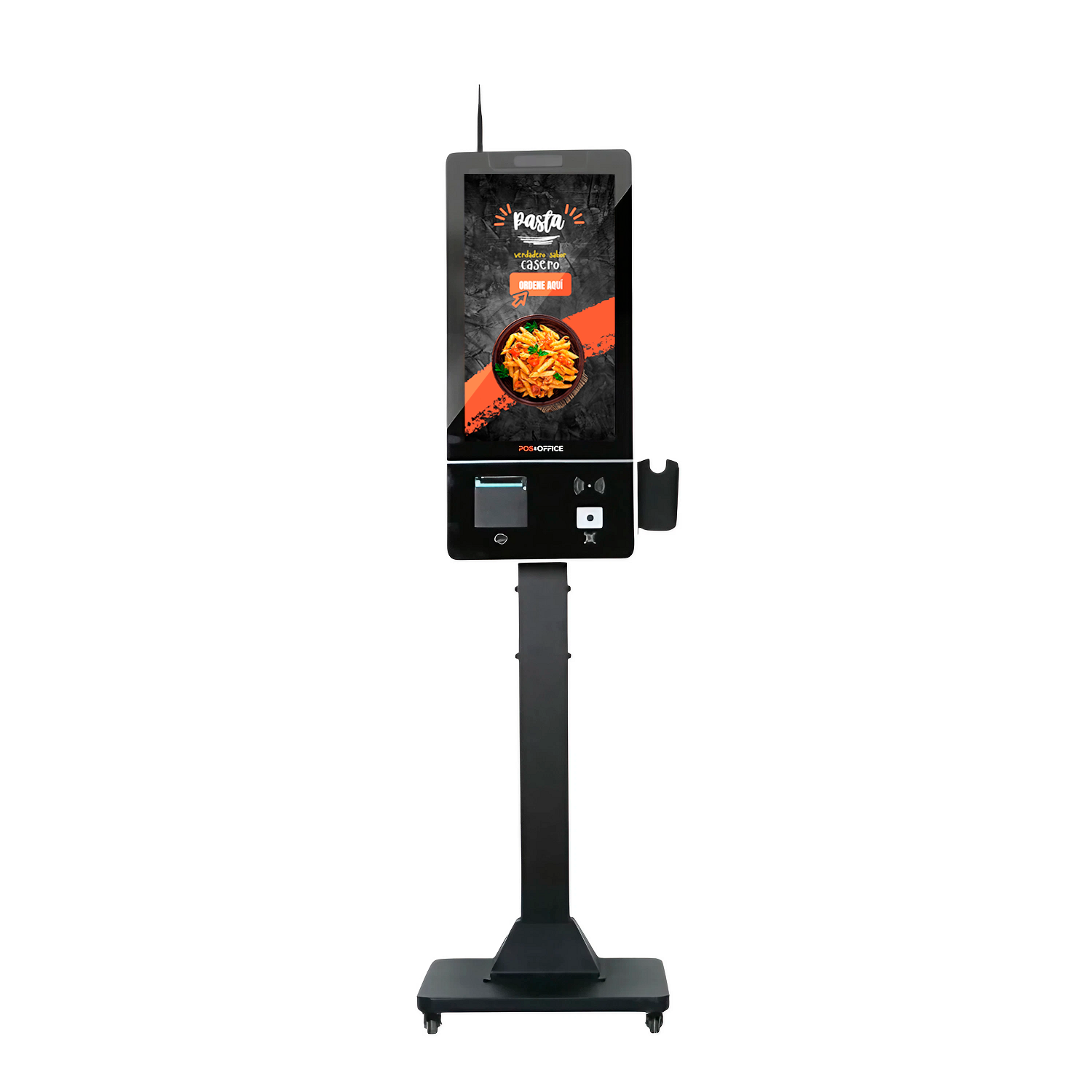

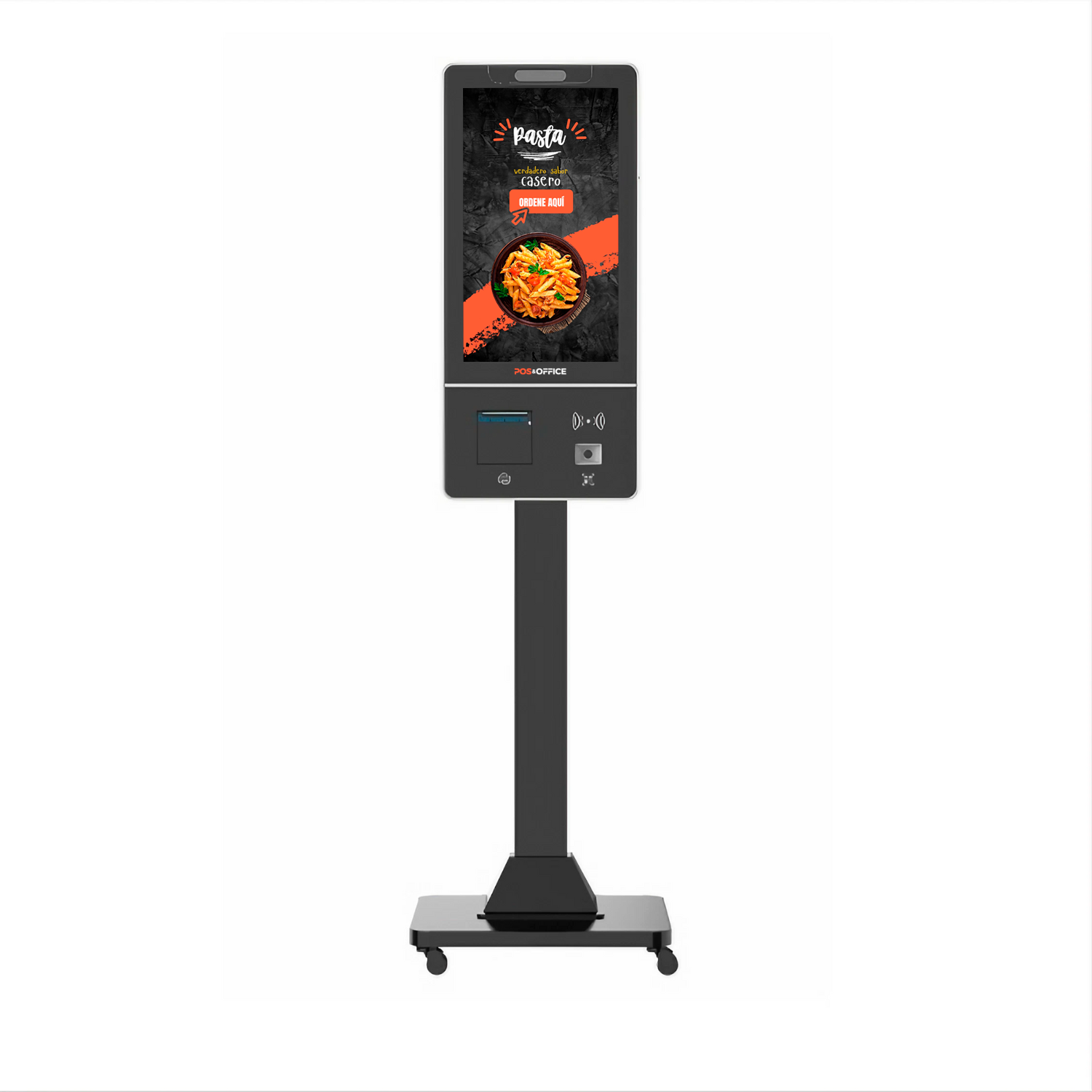

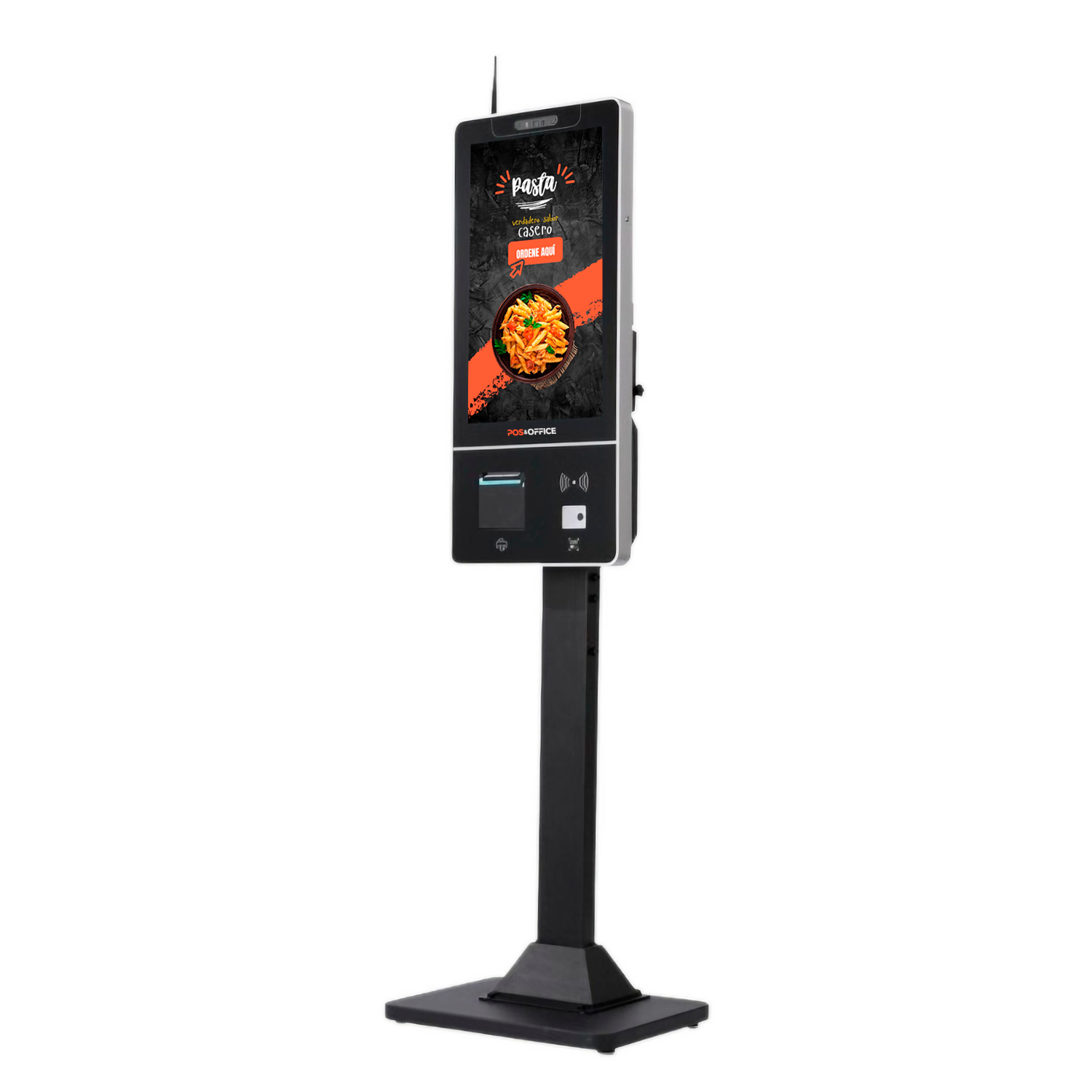

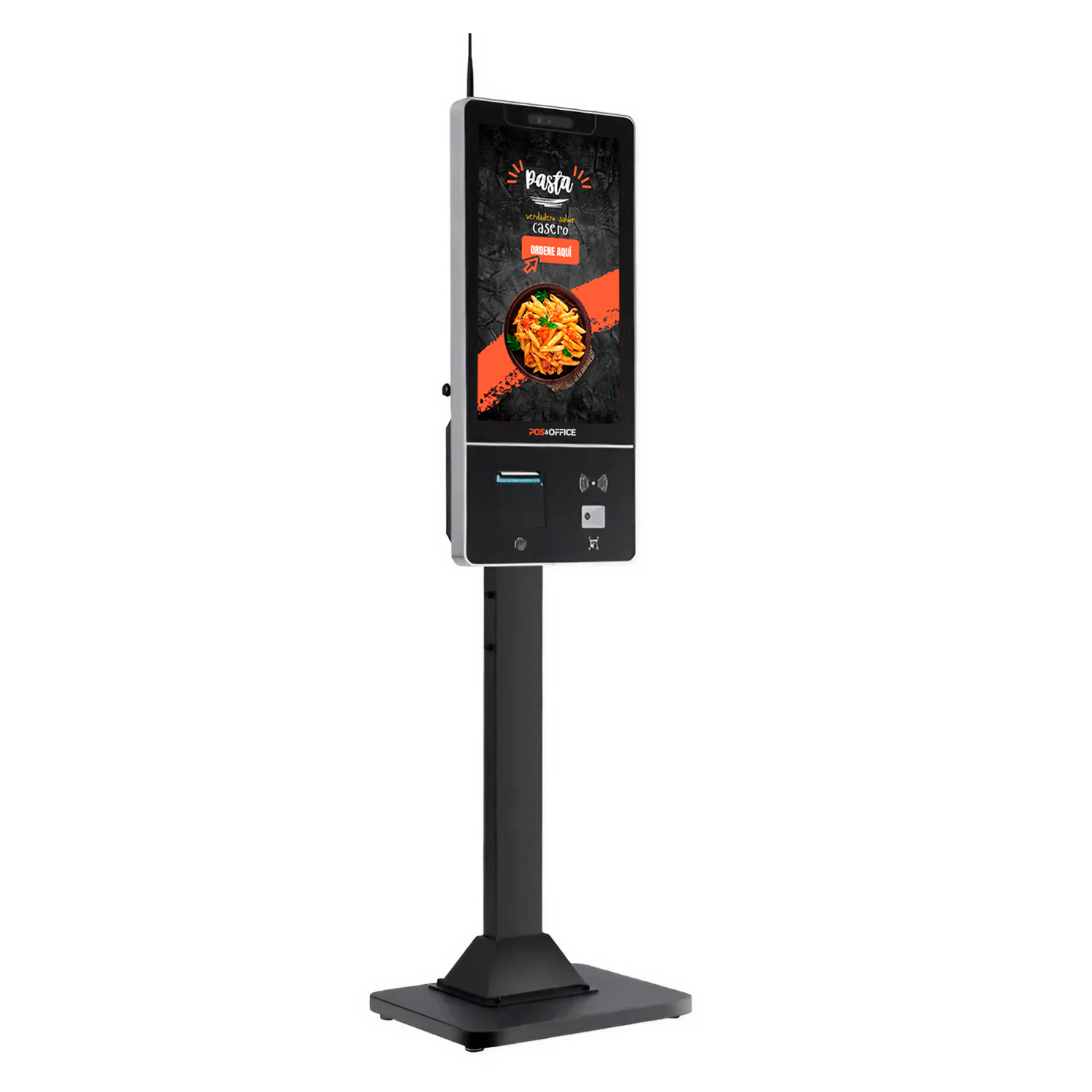

- Streamline your customers' purchasing process with the Pos & Office TK121 self-service kiosk, which allows them to scan, pay and receive their products quickly and safely.
- Offer an interactive and personalized experience with a 21.5-inch touch screen that adapts to your needs and those of your customers. Choose between Android 11 or Windows 10 Pro as the operating system and take advantage of the facial recognition camera option to identify your regular customers and offer them special promotions.

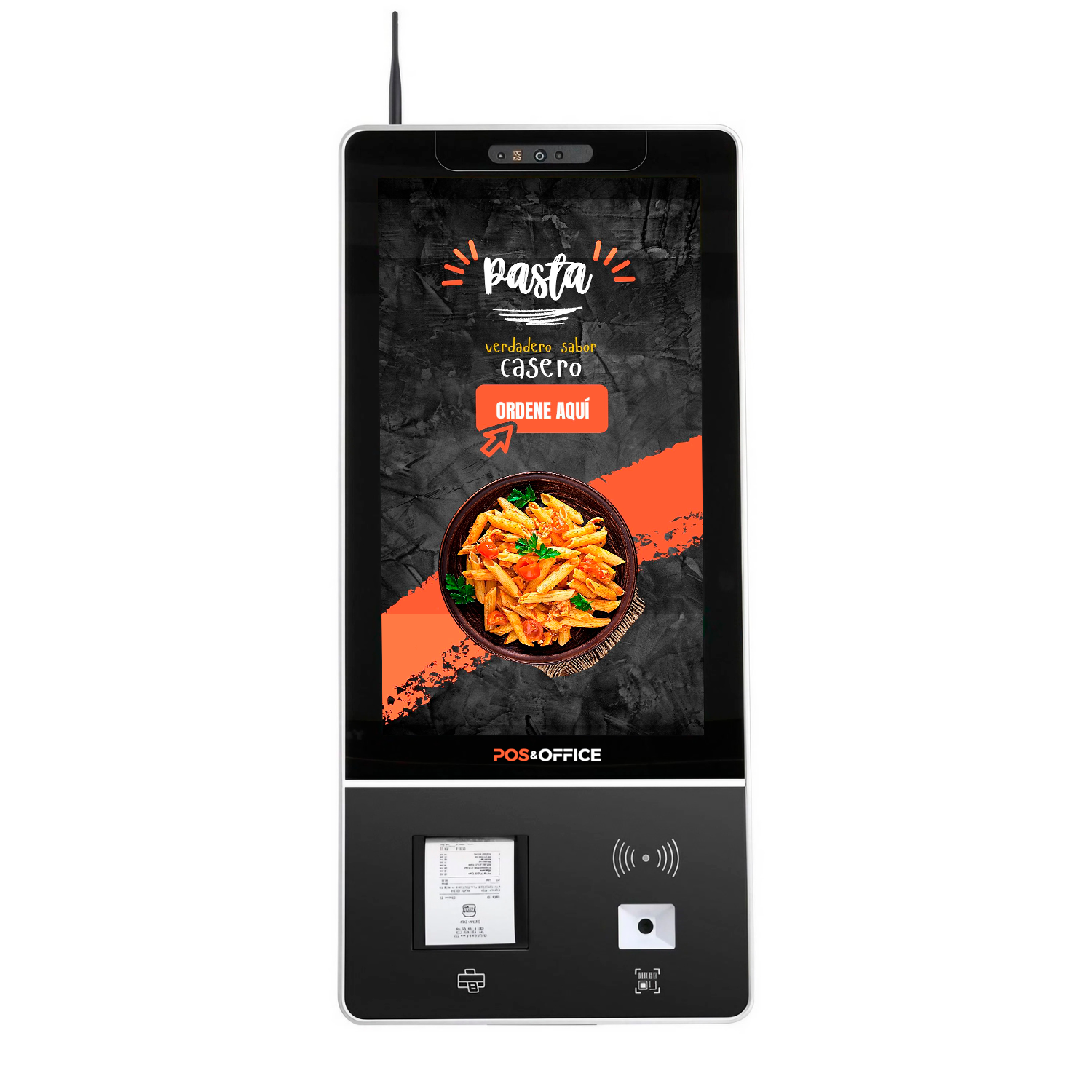

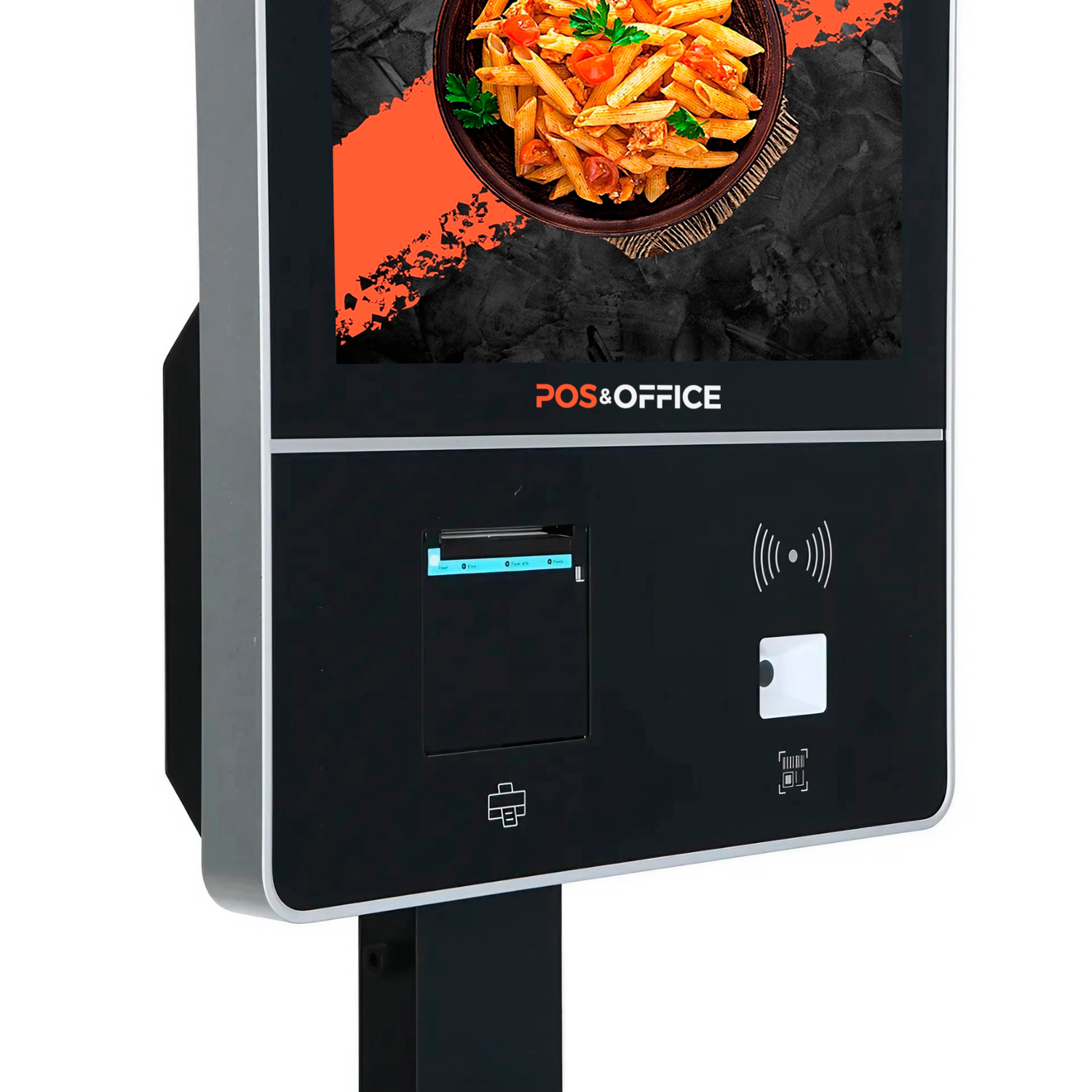

- Save space and money with a compact and versatile self-service terminal that integrates an 80mm thermal printer, Imager 2D barcode reader and NFC. The kiosk is vandal resistant with 3mm thick tempered glass and can be floor or wall mounted at your convenience.
- Thanks to the versatility of the TK121 self-service totem, expand your offer and attract more customers with a kiosk that allows you to sell digital products, such as phone recharges, gift cards, transportation tickets or event tickets. The 2D barcode reader can read QR codes on the screen, making it easy to deliver and validate these products.
- Be part of the digital transformation with the new Pos & Office TK121 kiosk, which helps you optimize management, reduce your operating costs and improve customer service.
- Pos & Office TK121, the self-service kiosk that revolutionizes your business.
Dimensions
Dimensions
360mm x 76mm x 800mm (without floor stand)
Weight
Weight
41 kg
Box contents
Box contents
1x Kiosk TK121 (includes power supply and power cable)












Technical specifications
-
PERFORMANCE
Processor
Option 1 – Rockchip RK3566
Option 2 – Intel J6412, up to 2.6Ghz
OS
Android 11
Windows 10 Pro Ready (not activated)
Memory
Android
2GB RAM
Windows
4GB RAM
Storage
Android
16GB eMMC
Windows
128GB SSD
Display
21.5” Full HD, capacitive touch
Bright
400cd/m2
Orientation
Vertical
Resolution
1080x1920
Speakers
2x 5W
Camera (optional)
Facial recognition camera
Optional Accessories

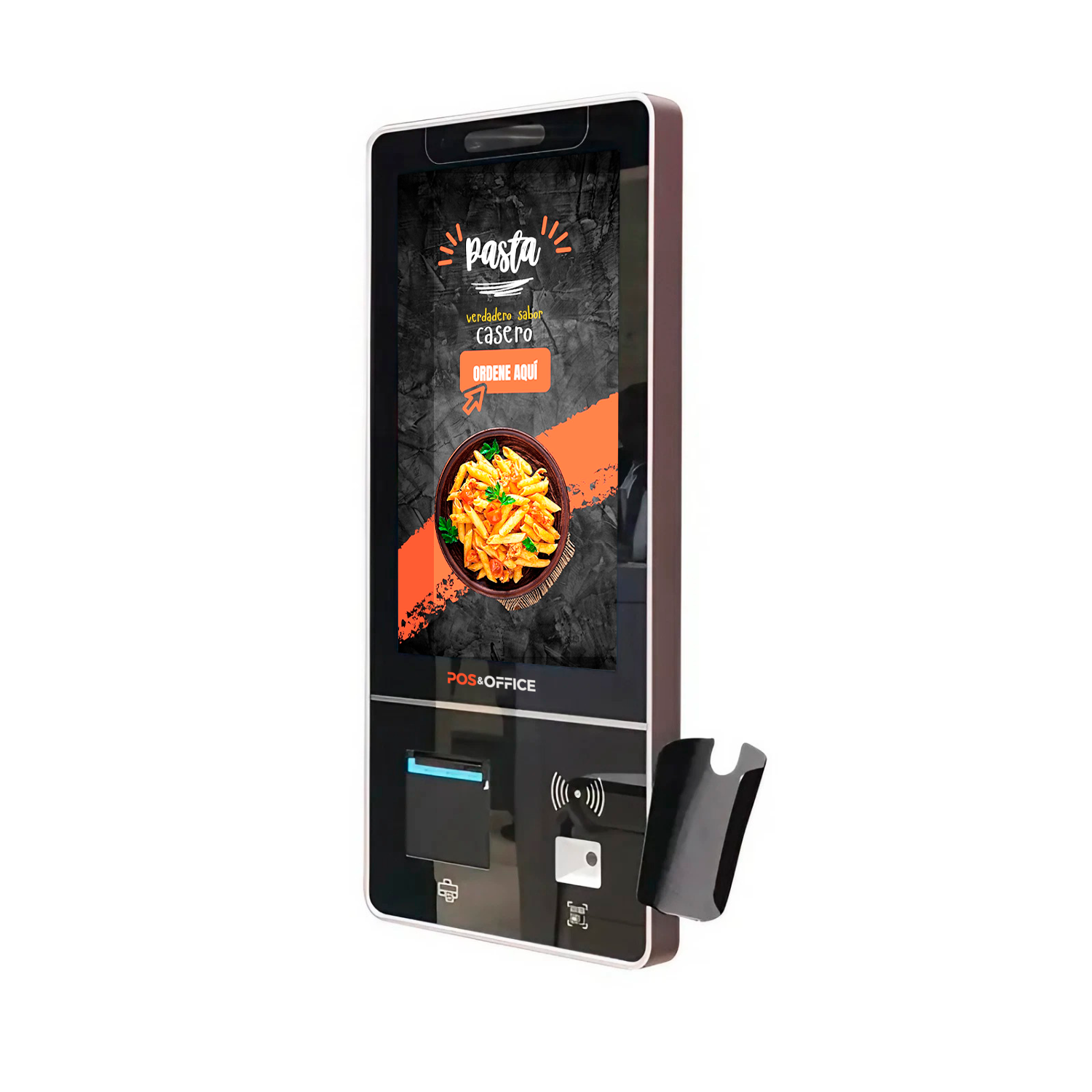

POS holder (pinpad) -

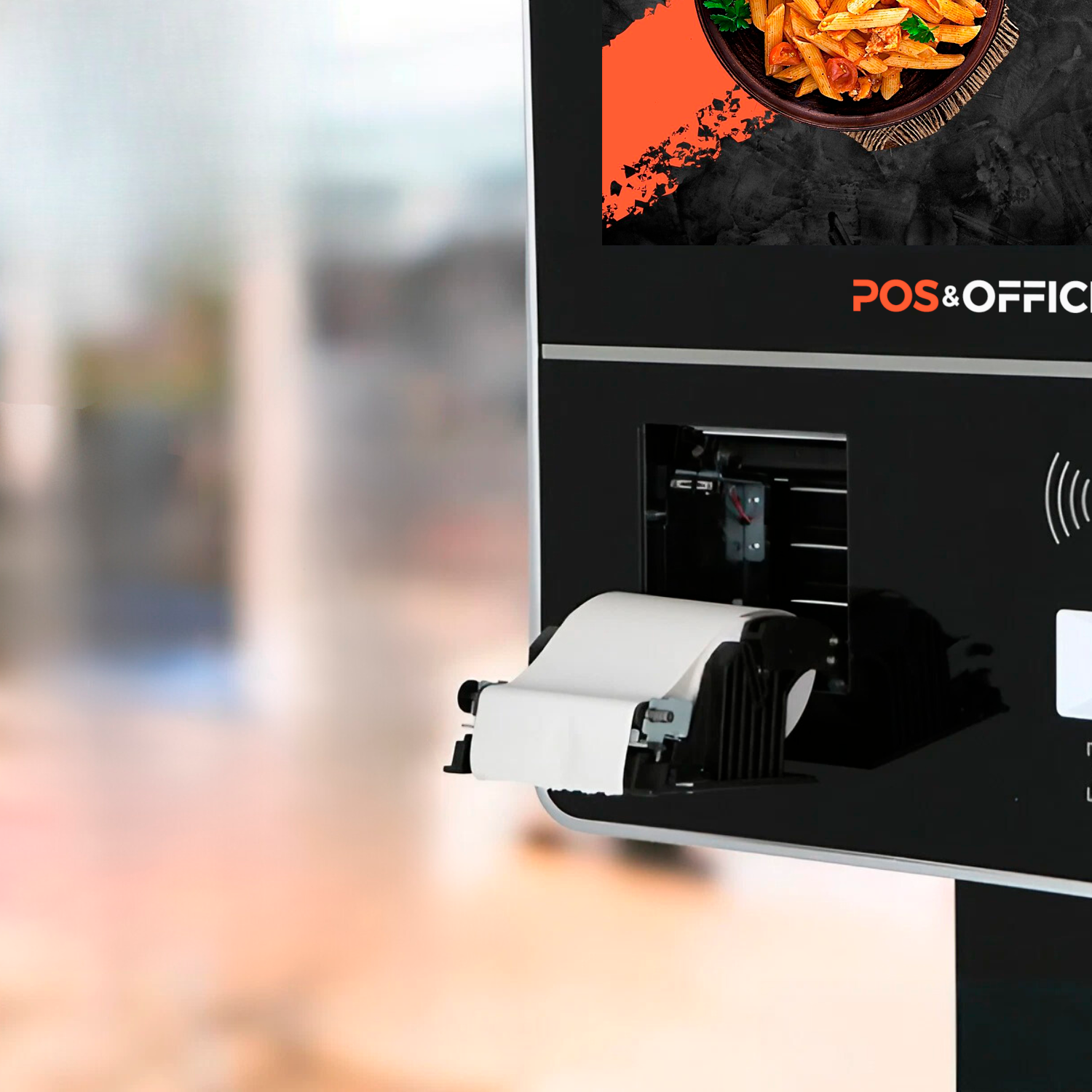

PRINTER
Printer
80mm thermal with auto cut function
Print speed
170mm/s -
WIRELESS COMMUNICATIONS
WiFi (optional)
Android
802.11b/g/n
Windows
802.11b/g/n
Bluetooth (optional)
Android
Bluetooth 4.2
NFC
Integrated -
ENVIRONMENTAL
Operating temperature
0 to 45°C
Storage temperature
-10 to 50°C
Humidity
5% to 95% (non-condensing) -
DATA CAPTURE
Scanner
1D/2D imager, frontal orientation. Read codes from screens
1D
All major symbologies,
Among them UPC/EAN/JAN, UPC-A & UPC-E,
EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN,
Code 39 (with full ASCII), Codabar (NW7),
Code 128 & EAN 128, Code 93, Interleaved 2 of 5
2D
All major symbologies including QR Code, Data Matrix, PDF417 -
PHYSICAL CHARACTERISTICS
Dimensions
360mm x 76mm x 800mm (without floor stand)
Weight
41Kg
Front protection
3mm thick tempered glass, anti-vandalism
Construction
ABS plastic, aluminum alloy frame
Color
Black/White
Interfaces
2x USB 3.0
2x USB2.0
1x HDMI
1x RJ45 Ethernet
1x Power Switch
1x DC-IN
Energy
AC 100~240V/50~60hz

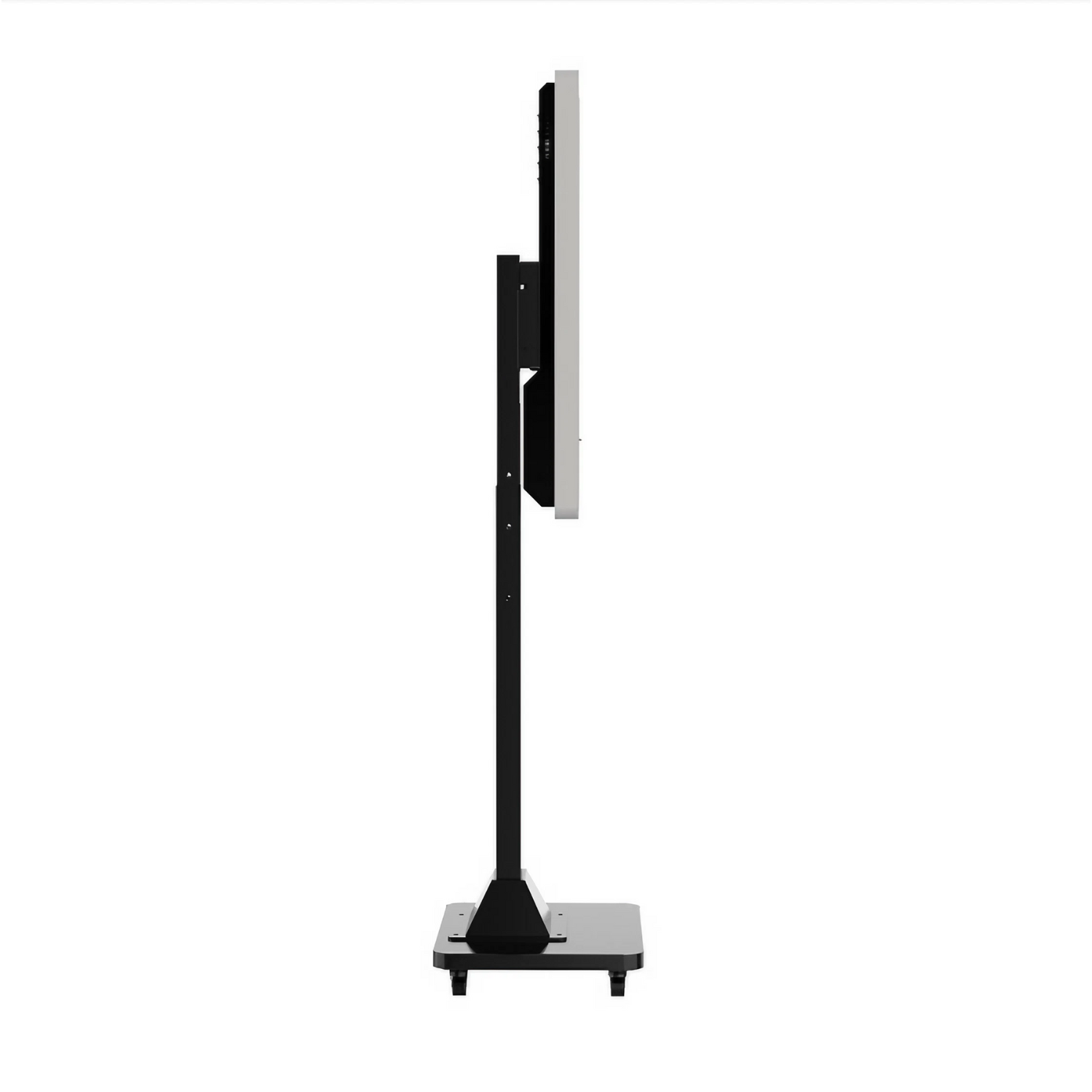

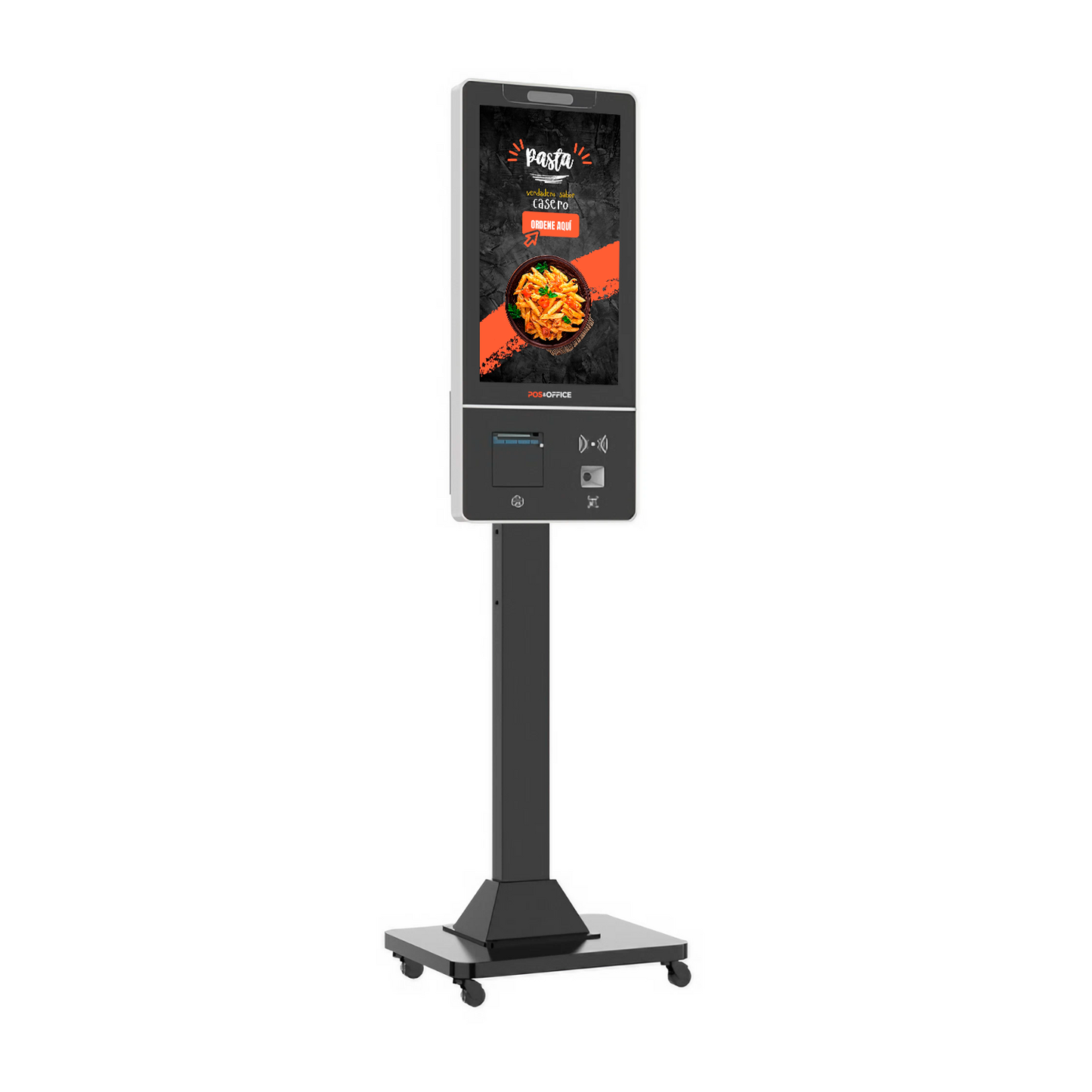

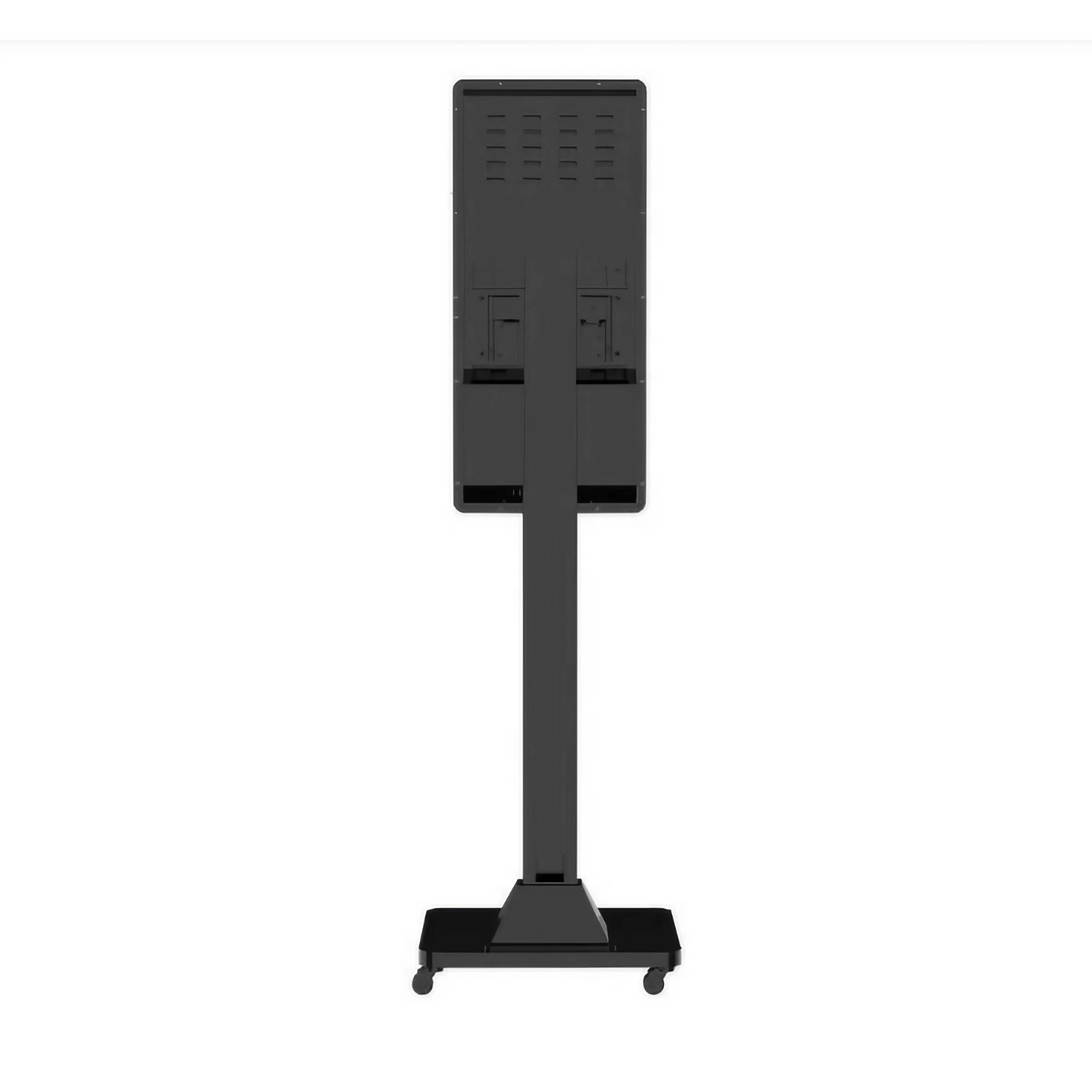

Mounting options
Floor stand, wall mount -
